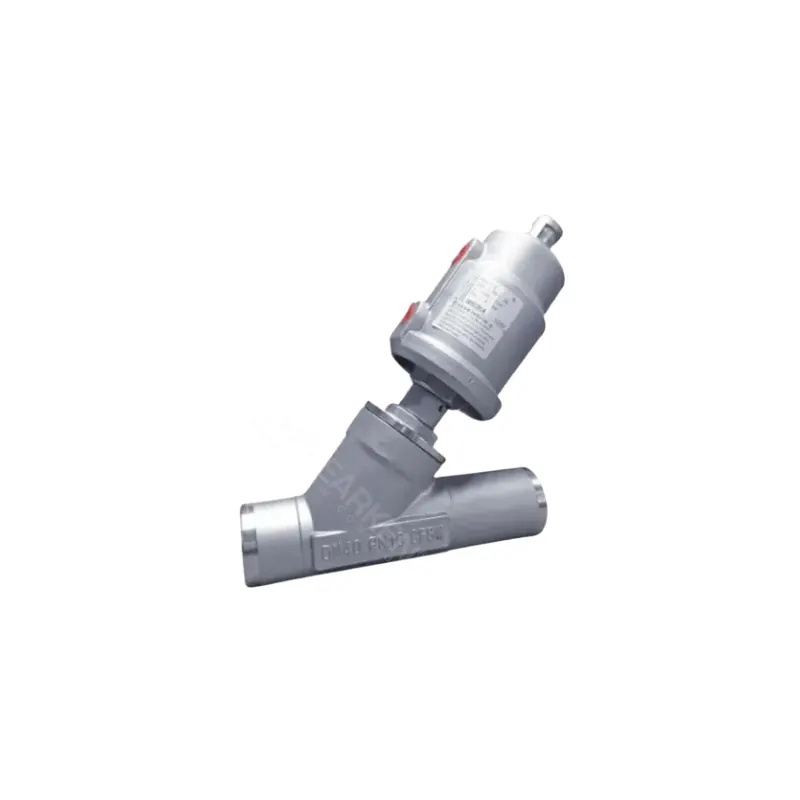

Pneumatic Angle Seat

Item Number: Q5 Series

Advantages

External advanced Angle, especially compare with the normal globe valve seat valve, there is an adjustment sealing gland between overflow drain and slider, body structure can enforce more flowrate, especially compared with the normal globe valves.

Technical Data

Pressure range:0-16bar

Medium temperature:-10°C~+180°C

Environmental temperature: -10°C~+60°C

Body material: Stainless steel

Sealing material: PTFE

Actuator material: PA

Medium: Neutral gas, air, water

Option

Control functions: Normally open

Actuator material suitable for environmental temperature: +5°C~+130°C

No return spring double-acting actuators

Electronic position feedback

Independent adjustable stroke limit, suitable for high-low flow schedule

Manual emergency switch

Namur Pilot valve suitable Namur adapter

Dimension

Size (DN)	D	m	L	A	H	E
15	1/2″	φ50	85	180	140	65
20	3/4″	φ50	95	185	145	65
25	1″	φ50	106	190	155	65
25	1″	φ63	105	220	185	80
32	1 1/4″	φ63	120	230	188	80
40	1 1/2″	φ63	130	235	195	80
40	1 1/2″	φ80	130	228	215	100
50	2″	φ63	150	250	205	80
50	2″	φ80	150	268	225	100
65	2 1/2″	φ80	185	285	260	100
65	2 1/2″	φ100	185	325	320	126
80	3″	φ100	210	335	330	126
